Fujitsu fi-5110EOX2 ScanSnap
(Windows/PC Version)
Additional Images
January 3, 2006
Introduction Installing The ScanSnap ScanSnap Manager v1.0 (Part 1)
ScanSnap Manager v1.0 (Part 2) ScanSnap Manager v1.0 (Part 3) ScanSnap Organizer v1.0
Cardminder v2.0 Specifications Conclusion Additional Images


Additional ScanSnap Images

The following are selected images which were taken in addition to the review.

Buttons

Two main buttons operate the scanner. The SCAN button is a one-touch button which scans your documents. The POWER button is used override the automatic "On/Off" switch when you open and close the flap of the ScanSnap. So, for example, you could leave the flap open and simply press the power button to turn it off.

Fujitsu ScanSnap - Buttons

Back Of The ScanSnap

The Back Of The Fujitsu ScanSnap

The back of the ScanSnap reveals, well, not much. The USB2.0/1.1 port on the lower-left, and the power port on the lower-right. Just a little above center, are the ventilation slots.

Inside The ScanSnap

I thought this would be an interesting view. Inside the ScanSnap, you can see how everything is compacted together, resulting in quite a machine. You probably wouldn't think there is much to making a scanner, but I wanted to show you this is not necessarily the case.

Fujitsu ScanSnap - Inside

ScanSnap Sides

A few shots of the sides of the ScanSnap.

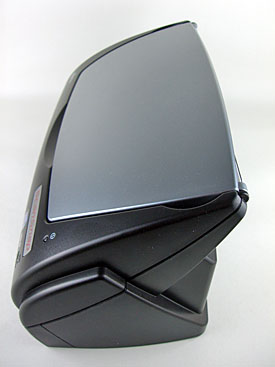

Fujitsu ScanSnap - Right Side Fujitsu ScanSnap - Left Side
