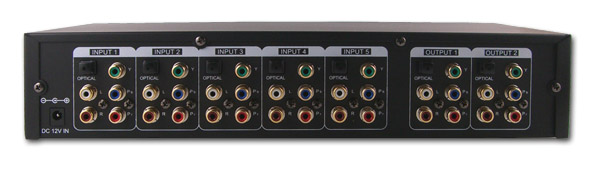

6x2 Component Matrix Video Switch - Back View

Home Reviews Forums News 2015 2013 2012 2009 2008 2007 2006 2005 2004
RSS Feeds FOV Factor Table Sensor Sizes | Definitions: A-D E-H I-L M-P Q-U V-Z | Sitemap
Articles Archived Websites (Pre-DigitalDingus): D100 Lounge E-10 Club | Contact

6x2 Component Matrix Video Switch
by Impact Acoustics
Specifications
August 8, 2007
6x2 Component Matrix Switch: Introduction
6x2 Component Matrix Switch: What's In The Box 6x2 Component Matrix Switch: A Closer Look
Using The 6x2 Component Matrix Switch 6x2 Component Matrix Switch: Specifications
6x2 Component Matrix Switch: Conclusion

6x2 Component Matrix Video Switch
Model Number 40697
Number Of Inputs 6 (5 on the back; 1 on front of unit)
Number Of Outputs 2 (can be used as two independent or simultaneous)
Power Requirements DC 12V 500mA
Power Consumption 6 Watts
Optical Output Level 6uW Min.
Frequency Response 20~20KHz
Video Component Input Impedance 75 Ohms
Video Bandwidth -3dB@300MHz
Dimensions 13.5" (W) x 2.5" (H) x 6.75" (D)
Weight 3 lbs, 15.5 oz (1.79 kg)
MSRP $179.99
Remote Specifications
Type Of Transmission Infrared
Remote Working Distance ~30ft
Dimensions 1.5" (W) x .25" (H) x 3.33" (D)
Weight 10g (.4 oz)
Package Contents
  • 6x2 Component Matrix Switch ("40697")
  • IR Remote
  • AC Adapter
  • User Manual
