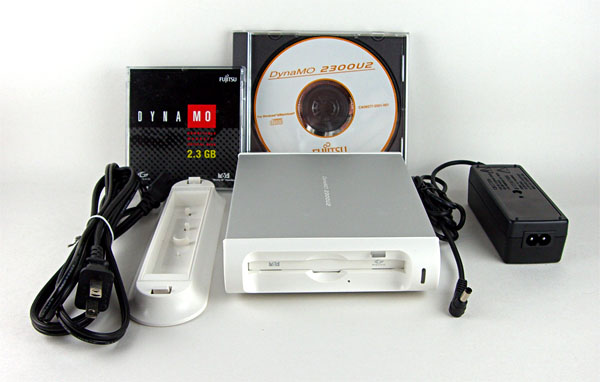

Fujitsu 2.3GB Package Contents

Home Reviews Forums News 2015 2013 2012 2009 2008 2007 2006 2005 2004
RSS Feeds FOV Factor Table Sensor Sizes | Definitions: A-D E-H I-L M-P Q-U V-Z | Sitemap
Articles Archived Websites (Pre-DigitalDingus): D100 Lounge E-10 Club | Contact

Fujitsu DynaMO 2300U2
Specifications
November 9, 2005
Introduction The 2300U2 Why MO? Data Security Specifications Conclusion



Fujitsu DynaMO 2300U2
Interface USB 2.0
Optical Disk Cartridge 90 mm ISO Standard
Formatted storage capacity 128MB; 230MB; 540MB
640MB; 1.3GB; 2.3GB MB
Disks 1
Heads (read/write) 1
Track Capacity (2.3 GB media) 34,816 bytes (logical) (formatted)
Bytes per sector (2.3 GB media) 2048 bytes
User tracks/side (2.3 GB media) 64,955
Sectors per track (2.3 GB media) 17 logical
Seek Time (average) 19 milliseconds
Rotational Speed 3,637 RPM
Recording density (2.3 GB media) 110,060 bpi
Track density (2.3 GB media) 37,910 tpi
Loading time 20secs
Unload time 4secs or less
Data Transfer Rate 8.18MB/s
Recording Code 2-7 RLL; 1-7 RLL
Head Positioning Method Direct
Data Buffer Size 8MB
Power requirements (Voltage) 5V
Pwr req. Read/write 5.6 W (typical)
Pwr req. Idle (ready) 4.1 W (typical)
Pwr req. Sleep 0.5 W (typical)
Ambient Temperature (operating) 5 to 45 degrees C
Ambient Temperature (non-operating) 0 to 50 degrees C
Gradient 10 degrees C per hour
Relative Humidity (operating) 10 to 85 % RH (non-condensing)
Relative Humidity (non-operating) 10 to 85 % RH (non-condensing)
Vibration (operating) 0.4 G
Vibration (non-operating) 1.0 G
Shock (operating) 19.6 G
Shock (non-operating) 49 G
Altitude (operating) 9,842ft (3000 meters)
Altitude (non-operating) 39,370ft (12,000 meters)
MTBF (Mean Time Between Failures) 120,000 power on hours
MTTR (Mean Time To Repair) 30 minutes
Recoverable Errors 10 per 10^5 bits read
Seek Errors 10 per 10^7 seeks
Weight 630g (1.38lbs)
Dimensions 25.4mm (H) x 101.6mm (W) x 150mm (D)
2300U2 Warranty One-year Limited Warranty
Media Warranty Lifetime Warranty
MSRP $279.00
Street Price (11-9-2005) ~$250.00 USD
