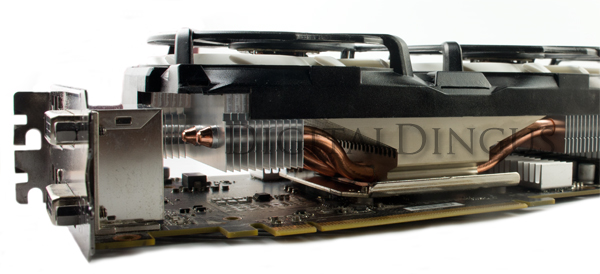

Accelero XTREME Plus II
by Arctic Cooling
Specifications
October 21, 2012
Accelero XTREME Plus II A Closer Look
Radeon HD 6970 Installation Features & Specifications Conclusion





Packaging
  • Three-piece sealed hard plastic
Compatibility
    AMD Radeon
    • HD 6970, HD 6950
    • HD 6870, HD 6850
    • HD 6790
    • HD 5870, HD 5850, HD 5830
    • HD 4890, HD 4870, HD 4850, HD 4830
    • HD 3870, HD 3850
    NVIDIA GeForce
    • GTX 580, GTX 570, GTX 560
    • GTX 550Ti, GTX 560Ti
    • GTS 550
    • 480, 470*, 465*, 460 SE, 460
    • 285*, 280*, 275*, 260+*, 260*, 450, 250, 240 (OEM)
    • 150 (OEM), GT 130 (OEM)
    • 9800 GTX+, 9800 GTX, 9800 GT
    • 9600 GT, 9600 GSO 512, 9600 GSO
    • 9500 GT
    • 8800 Ultra (G80), 8800 GTX (G80), 8800 GTS 512 (G92), 8800 GTS (G92), 8800 GTS (G80), 8800 GT, 8800 GS (9600GSO)
    • 7900 GTX, 7800 GTX 512, 7800 GTX, 7800 GT
    • *Additional accessories set is required
Specifications
  • Dimensions: 288mm x 103mm x 50mm (LxWxH)
  • Heatsink Material: Aluminum Fins (x83), thickness 0.3mm
  • Heatpipe: 6mm (x5)
  • Fan: 92mm (x3) with 300mm cable
  • Fan Speed: 900-2,000RPM (PWM controlled)
  • Max Cooling Capacity: 300 Watts
  • Bearing: Fluid Dynamic Bearing
  • Noise Level: 0.5 Sone
  • Weight: 615g
Package Contents
  • Accelero XTREME Plus II
  • Heatsinks x31
  • Screws (M2) x4
  • Washers x4
  • Spacers (3mm) x4
  • Spacers (4.5mm) x4
  • Adhesive Tape x1
  • Thermal Pads x3
  • G-1 Grey Compound (2g) x1
  • G-1 White Compound (2g) x1
  • Mixing Wand x1
  • 4-Pin Fan Power Adapter x1 (Molex)
  • VGA Bracket x1
  • Instruction Manual
Downloads
  • Instruction Manual (English): Click Here (2.8MB PDF)
  • Marketing Sheet (English): Click Here (382KB PDF)
  • Accelero XTREME Plus II Spec Sheet (English): Click Here (227KB PDF)
