Turbo-Cool 1KW-Quad SLI
(by PC Power & Cooling, Inc.)
Specifications
April 29, 2006
Introduction TC1KW4E Closer Look The Certified Test Report Specifications Conclusion

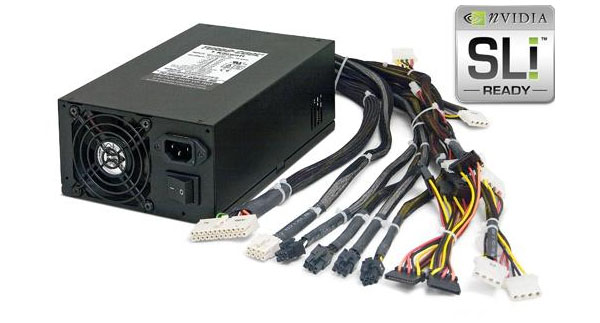

Turbo-Cool 1KW-Quad SLI

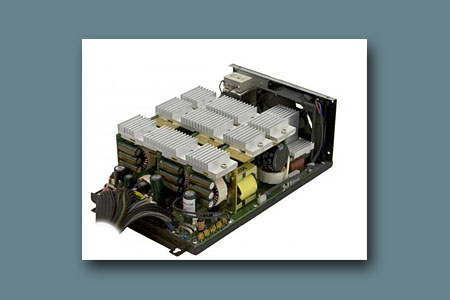

Turbo-Cool 1KW-Quad SLI
Included Accessories
Accessories 4 Standard Computer Screws
"Turbo-Cool 1 Kilowatt" sticker
8-pin CPU to 4-pin CPU (ATX12V)
Aux Motherboard to Molex 4-pin Motherboard
Aux Motherboard to Square 4-pin Motherboard
1KW/TC1KW4E Turbo-Cool Guide Brief
TC1KW4E Certified Test Report (3 pages)
Please note when ordering a PC Power & Cooling PSU, you can request any type of cable(s) to be made for your particular computer system setup.
PSU
AC INPUT
Operating Range 90-264 VAC
.99 Power Factor
Frequency 47-63Hz
Current 15A @ 115V
Efficiency 83%
EMI FCC-B, CE
DC Output
OUTPUT +5V @ 30A
+12V1 @ 16A (CPU)
+12V2 @ 16A (Drives)
+12V3 @ 36A (Graphics)
+12V1,V2,V3 = 66A (70A peak)
-12V @ 0.8A
+3.3V @ 30A
+5VSB @ 3.5A
Continuous Power 1000W
Peak Power 1100W
SAFETY
OV Protection +3.3V, +5V, +12V
OC Protection +3.3V, +5V, 12V
ENVIRONMENTAL
Temperature 0 - 50C
Humidity 10% - 90% RH
Fan Type 30 - 52 CFM ball-bearing
MISCELLANEOUS
Compatibility SLI, EPS12V, SSI
M/B Connectors 24-pin, 8-pin, 4-pin, quad 6-pin video
Drive Connectors 15 (6 SATA, 8 Molex, 1 mini)
MTBF 120,000 hours
Weight Approximately 10lbs
Dimensions (excluding cables) 5.9" x 3.4" x 9.1" (W x H x D)
Motherboard Compatibility See Website for Complete List
Warranty 5-Year Limited Warranty
MSRP $499.00
Street Price $499.00
