Fujitsu MHV2120AT
(120GB 4200RPM 8MB Cache 2.5" HDD)
IO Meter FAT32 Results
Introduction HD Tach RW 3 (Non-Partioned Results) HD Tach RW 3 (FAT32 Results) HD Tach RW 3 (NTFS Results) IO Meter FAT32 Results IO Meter NTFS Results Summation
Conclusion


IO Meter FAT32 Results

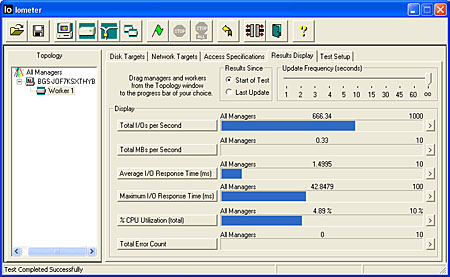

These are the results for the FAT32 tests.
512 Byte File Size Test - READ
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Read 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Read Response Time (ms) Maximum Read Response Time (ms) CPU Utilization (total %)
2mins 668.08 .33 1.5001 342.1343 4.16
5mins 667.24 .33 1.4976 361.0790 4.94
10mins 667.88 .33 1.4962 351.0962 3.99
.
512 Byte File Size Test - WRITE
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Write 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Write Response Time (ms) Maximum Write Response Time (ms) CPU Utilization (total %)
2mins 668.07 0.33 1.4959 45.7982 4.36
5mins 668.34 .33 1.4953 28.6628 3.99
10mins 668.31 .33 1.4954 34.4178 3.87
.
512 KiloByte File Size Test - READ
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Read 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Read Response Time (ms) Maximum Read Response Time (ms) CPU Utilization (total %)
2mins 35.74 17.87 27.9709 55.8509 2.36
5mins 35.76 17.88 27.9586 44.3880 2.35
10mins 35.76 17.88 27.9596 51.3502 2.35
.
512 KiloByte File Size Test - WRITE
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Write 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Write Response Time (ms) Maximum Write Response Time (ms) CPU Utilization (total %)
2mins 24.69 12.35 40.4851 393.9488 2.36
5mins 24.62 12.31 40.6181 383.4525 2.05
10mins 24.71 12.35 40.4655 389.4508 2.15
.
1 MegaByte File Size Test - READ
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Read 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Read Response Time (ms) Maximum Read Response Time (ms) CPU Utilization (total %)
2mins 17.88 17.88 55.9366 90.2750 2.44
5mins 17.41 17.41 57.4196 91.6207 2.34
10mins 17.76 17.76 56.2920 111.7183 2.23
.
1 MegaByte File Size Test - WRITE
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Write 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Write Response Time (ms) Maximum Write Response Time (ms) CPU Utilization (total %)
2mins 12.36 12.36 80.8653 113.1811 2.36
5mins 12.21 12.21 81.9092 122.6761 2.23
10mins 12.38 12.38 80.7367 115.1919 2.15
