Fujitsu MHV2080AH
(80GB 5400RPM 8MB Cache 2.5" HDD)
IO Meter NTFS Results
Introduction Before The Tests HD Tach RW 3 (Non-Partioned Results) HD Tach RW 3 (FAT32 Results)
HD Tach RW 3 (NTFS Results) IO Meter FAT32 Results IO Meter NTFS Results Summation
Conclusion

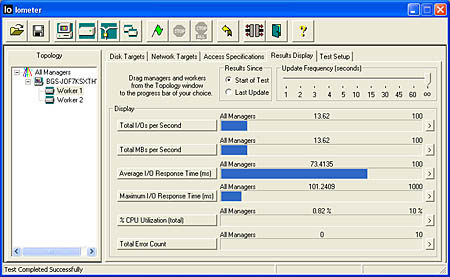

IO Meter NTFS Results

These are the results for the NTFS tests.
512 Byte File Size Test - READ
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Read 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Read Response Time (ms) Maximum Read Response Time (ms) CPU Utilization (total %)
2mins 666.36 .33 1.4996 310.2198 2.90
5mins 668.22 .33 1.4954 320.8933 2.68
10mins 667.93 .33 1.4960 327.1716 2.75
.
512 Byte File Size Test - WRITE
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Write 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Write Response Time (ms) Maximum Write Response Time (ms) CPU Utilization (total %)
2mins 668.26 .33 1.4952 2.9267 2.99
5mins 666.86 .33 1.4984 8.7598 2.65
10mins 668.22 .33 1.4953 8.0946 2.64
.
512 KiloByte File Size Test - READ
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Read 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Read Response Time (ms) Maximum Read Response Time (ms) CPU Utilization (total %)
2mins 35.75 17.88 27.9656 34.8926 1.11
5mins 35.75 17.88 27.9654 38.9056 0.96
10mins 35.75 17.87 27.9710 48.8765 1.06
.
512 KiloByte File Size Test - WRITE
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Write 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Write Response Time (ms) Maximum Write Response Time (ms) CPU Utilization (total %)
2mins 26.80 13.4 37.3046 320.1495 3.27
5mins 26.48 13.24 37.7619 328.6228 3.93
10mins 26.71 13.36 37.4341 332.5683 0.76
.
1 MegaByte File Size Test - READ
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Read 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Read Response Time (ms) Maximum Read Response Time (ms) CPU Utilization (total %)
2mins 17.87 17.87 55.9274 75.3003 1.12
5mins 17.88 17.88 55.9274 75.7726 1.01
10mins 17.88 17.88 55.9309 76.2780 1.00
.
1 MegaByte File Size Test - WRITE
Access Specification (%) Read / Write Distribution (%) Random / Sequential Distribution (%)
100% 100% Write 100% Sequential
Results
Test Length Total I/Os per Second Total MBs per Second Average Write Response Time (ms) Maximum Write Response Time (ms) CPU Utilization (total %)
2mins 13.46 13.46 74.2999 97.7571 0.81
5mins 13.37 13.37 74.7728 100.6765 0.72
10mins 13.37 13.37 74.7797 102.2289 0.78
